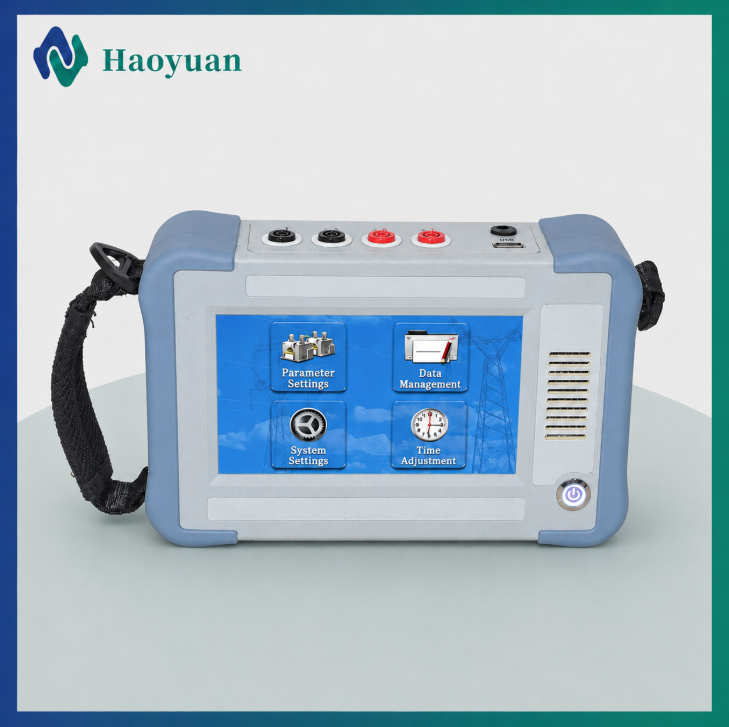

HYR10D(S) Handheld Grounding Continuity Tester

Key Advantages

• High-current testing: Selectable test current of AUTO, 1 A, 3 A, 5 A, or 10 A
• Ultra-low resistance measurement: Resolution down to 0.1 μΩ
• Multiple measurement ranges: Optimized for different test-current levels
• High measurement accuracy: ±(0.5% + 2 digits)
• Portable field design: Compact handheld instrument with a protective carrying case
• Built-in rechargeable battery: Supports convenient on-site testing without external power
• Large LCD display: Clear visualization of measurement results and operating status
• Large data capacity: Stores up to 1,000 test records
• Fast and simple operation: Automatic test control and straightforward user interface
• Customizable test leads: Standard 4 m red lead and 1 m black lead; customized lengths available

Wide Measurement Capability

The instrument supports multiple test-current levels to accommodate different grounding and bonding applications:

Designed for Field Applications

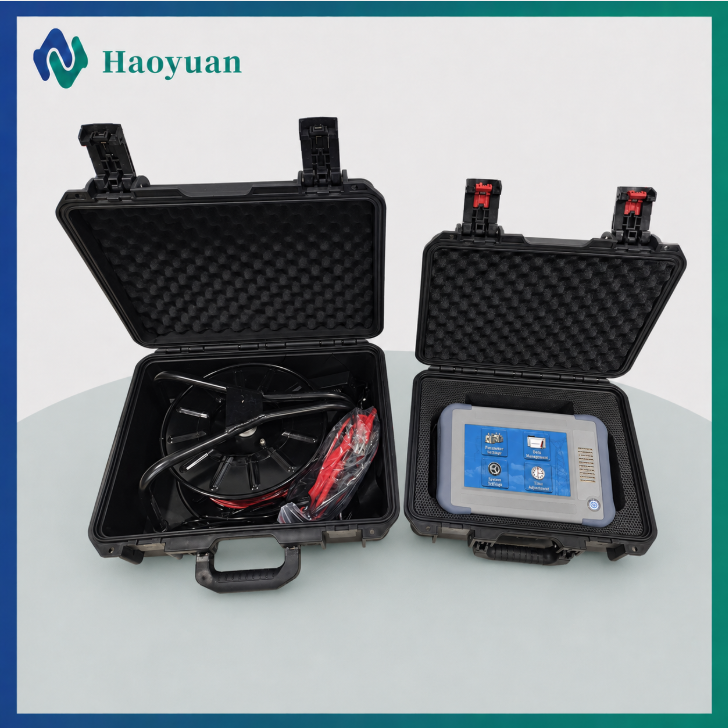

The handheld structure allows technicians to carry the instrument directly to the test location. The supplied carrying case provides convenient protection and transportation for the tester and its accessories.

The HYR10D(S) can be used for:

• Grounding conductor continuity testing
• Grounding grid connection resistance testing
• Electrical bonding connection testing
• Substation grounding system inspection
• Power plant grounding system maintenance
• Transmission and distribution equipment grounding inspection
• Electrical cabinet and equipment grounding verification
• Commissioning and preventive maintenance of electrical installations

Technical Specifications
