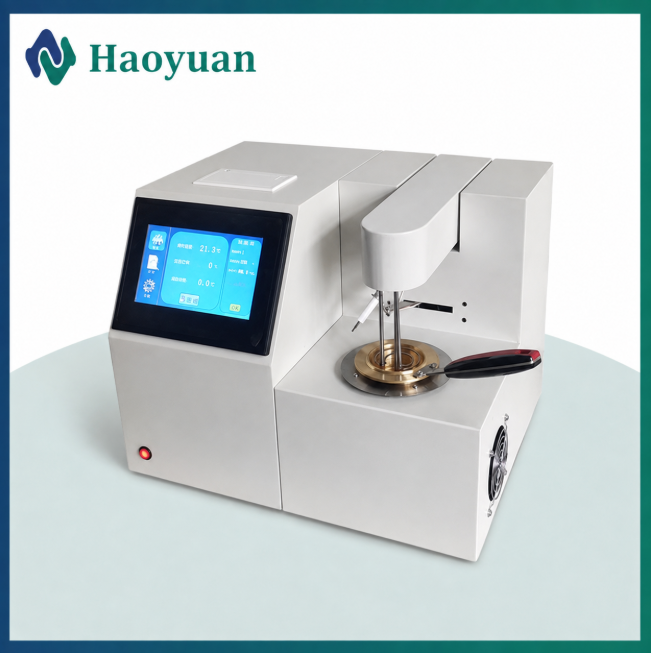

HYKS-3 Automatic Open-Cup Flash Point Tester for Transformer & Lubricating Oils

HYKS-3 Automatic Open-Cup Flash Point Tester for Transformer & Lubricating Oils

This automatic open-cup flash point tester uses the Cleveland Open-Cup method to determine the flash point and fire point of transformer insulating oil, lubricating oil, fuel oil, and other petroleum products. Ideal for transformer oil testing, thermal safety assessment, and laboratory analysis in the power and petrochemical industries.
Send Inquiry
  • Detailed Description


Key Features

  • Power Industry Application: Tests the flash point and fire point of transformer insulating oil, turbine oil, and other petroleum-based oils.
  • Accurate & Repeatable: Delivers reliable test results for oil quality monitoring and equipment condition assessment.
  • Intelligent Data Management: Color touchscreen HMI, built-in printer, atmospheric pressure correction, self-check, and test data storage.
  • Safe Electric Ignition: Gas-free electric ignition with forced-air cooling for safe and stable operation.
  • Reliable Oil Testing: Supports transformer oil quality control, thermal safety assessment, and preventive maintenance of power equipment.

Technical Specifications & Operating Conditions



Model

HYKS-3

Display

7-inch Color LCD Display

Operation Mode

Touch Screen

Flash Point Detection Method

Flash Fire Sensor

Measuring Range

40 ~400 ℃

Temperature Sensor

Silicon Carbide

Accuracy

±2 °C for temperatures ≥110 °C; ±1 °C for temperatures ≤110 °C

Ignition Mode

Electric ignition

Data Storage

>500 test results

Cooling System

Forced air cooling

Printer

dot matrix printer

Self-test Function

lift rod, stroke, print, etc.

Repeatability

GB/T3536-2008/ASTMD92

/GB / T 267-88

Power Supply

220 V±11 V, 50 Hz±2.5 Hz

Power Consumption

≤600 VA

Ambient Temperature

10 ~ 35 °C

Relative Humidity (RH)

≤90%
