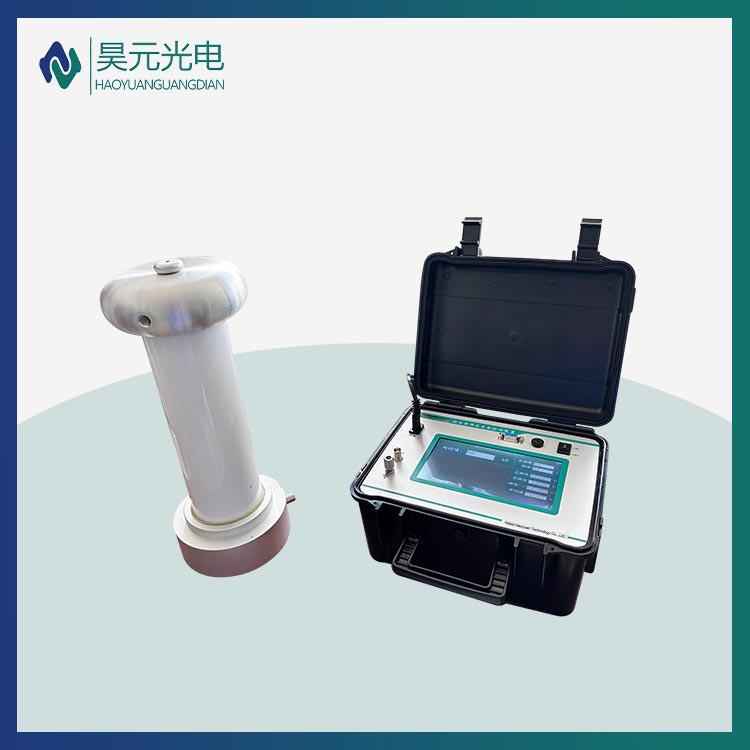

HY2623 AC High Voltage Test System 60kV-350kV for Electrical Insulation Testing

HY2623 AC High Voltage Test System 60kV-350kV for Electrical Insulation Testing

The HY2623 AC High Voltage Test System is developed for professional AC withstand voltage testing of electrical insulation systems. It is designed to evaluate the insulation strength and safety performance of high-voltage electrical equipment before commissioning or during periodic maintenance.
The equipment uses PWM high-frequency modulation control technology, ensuring accurate voltage regulation, stable output waveform, and excellent anti-interference capability.

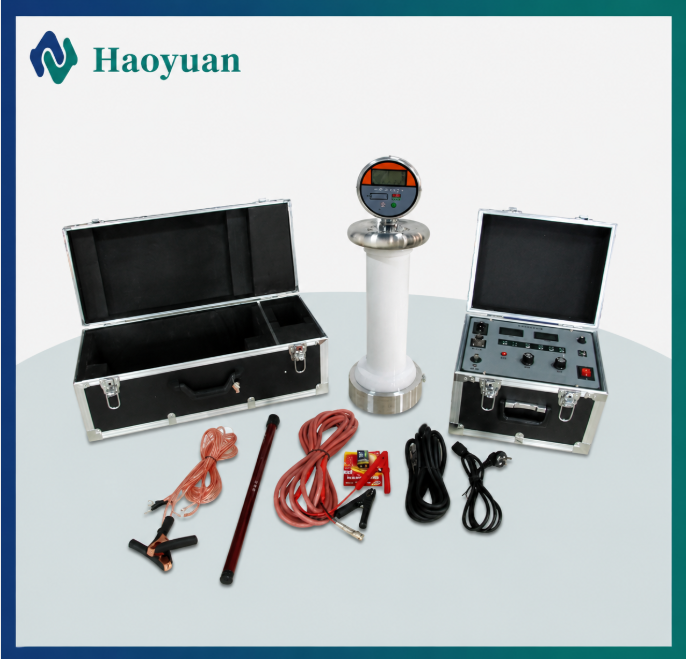

The system integrates a high-voltage power supply module, control cabinet, and measurement unit, providing convenient operation and accurate test results.
Send Inquiry
  • Detailed Description

Key Features

1. Stable High Voltage Output

  • Output voltage range from 60kV to 350kV
  • High voltage stability with low voltage fluctuation
  • Reliable AC withstand voltage testing performance

2. Advanced PWM Control Technology

  • High-frequency modulation technology improves output accuracy
  • Reduced voltage ripple and waveform distortion
  • Enhanced testing reliability

3. Digital Display and Monitoring

  • Digital measurement display
  • Real-time monitoring of voltage and current parameters
  • Clear operation interface for easy testing

4. Flexible Configuration

  • Multiple voltage levels available:
    • 60kV
    • 80kV
    • 100kV
    • 120kV
    • 160kV
    • 200kV
    • 250kV
    • 300kV
    • 350kV

5. Wide Application Range

Suitable for:

  • Power cable withstand voltage testing
  • Transformer insulation testing
  • Switchgear testing
  • Electrical equipment preventive maintenance
  • Laboratory high voltage experiments

Applications

HY2623 AC High Voltage Test System is widely used in:

  • Power transmission and distribution companies
  • Electrical testing laboratories
  • Transformer manufacturers
  • Cable manufacturers
  • Switchgear manufacturers
  • Railway power systems
  • Industrial electrical maintenance departments
  • Scientific research institutions

Technical Specifications

Parameter Specification
Product Model HY2623
Product Name AC High Voltage Test System
Test Type AC Withstand Voltage Test
Output Voltage Range

60kV / 80kV / 100kV / 120kV / 160kV /

200kV / 250kV / 300kV / 350kV
Output Capacity 5kVA – 35kVA
Control Method PWM High Frequency Modulation
Voltage Measurement Accuracy ±0.5% ±2 digits
Current Measurement Accuracy ±0.5% ±2 digits
Voltage Ripple ≤0.5%
Voltage Stability ≤0.5%
Operating Power Supply AC220V ±10%, 50Hz
Operating Mode Intermittent operation
Working Time ≤30 minutes
Operating Temperature -10℃ to +40℃
Storage Temperature -10℃ to +40℃
Humidity ≤90% RH
Altitude ≤3000m

High Voltage Transformer Unit Specifications

Rated Voltage Unit Size (mm) Unit Weight HV Unit Size (mm) HV Unit Weight
60kV 310×250×240 7kg 164×90×420 4.65kg
80kV 310×250×240 7kg 164×90×420 4.65kg
100kV 310×250×240 7kg 164×90×510 5.1kg
120kV 310×250×240 7kg 164×90×560 5.7kg
160kV 310×250×240 7kg 164×90×745 7kg
200kV 310×250×240 7.5kg 218×100×970 12.9kg
250kV 310×250×265 7.5kg 218×100×1065 13.8kg
300kV 310×250×270 8.7kg 218×100×1300 17.3kg
350kV 310×250×270 8.7kg 218×100×1340 18.2kg
