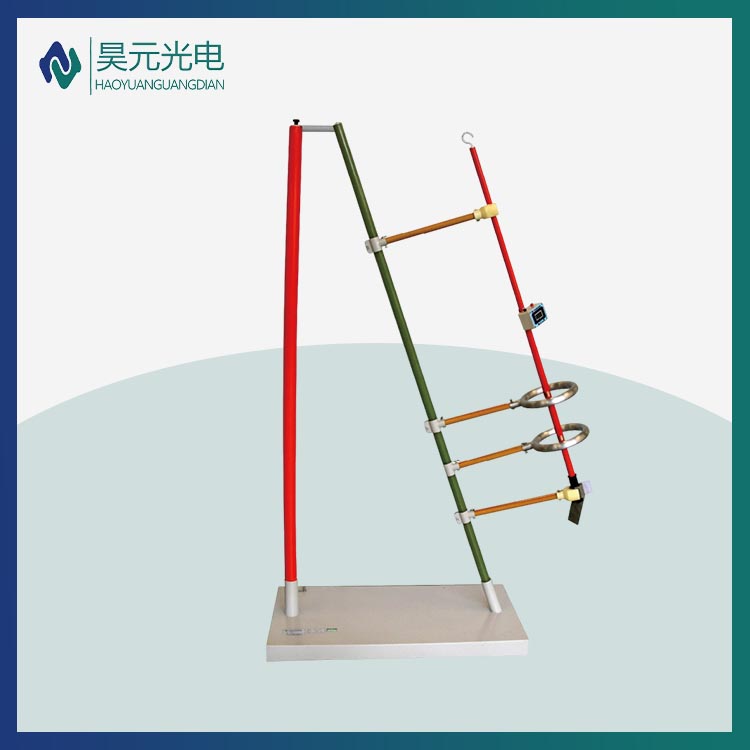

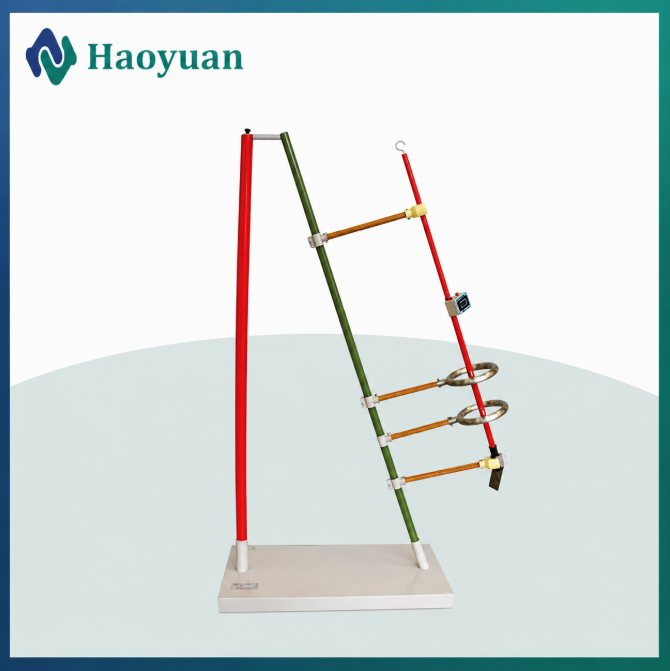

换图即可 HYHB2680HX Integrated Nuclear Phase Tester Leakage Current Test Bracket | 150kV High Voltage Test Support Device

Product Features

• Designed according to DL/T971-2017 leakage current testing requirements
• Suitable for resistance-type integrated nuclear phase testers
• High-strength fiberglass insulating support rod for safe high-voltage operation
• Adjustable electrode shielding ring for different test requirements
• Adjustable support mechanism compatible with multiple tester models
• Stable structure with excellent insulation performance
• Compact design for convenient installation and operation
• Suitable for laboratory and field testing environments

Applications

• Power grid inspection and maintenance
• High-voltage electrical safety testing laboratories
• Electrical equipment calibration centers
• Insulation tool testing facilities
• Integrated nuclear phase tester performance verification
• Power transmission and distribution equipment testing

Product Structure Description

The HYHB2680HX test bracket consists of:

• Metal chassis
  Provides a stable foundation and mechanical support during testing.
• High-voltage insulation bracket
  Made of high-quality glass fiber reinforced insulating rod with excellent electrical insulation properties.
• Electrode shielding ring
  Reduces electric field concentration and improves test accuracy and safety.
• Adjustable support mechanism
  Allows flexible positioning according to different nuclear phase tester specifications and voltage levels.

Technical Specifications
