Key Features

1. Multi-Station Testing Capability

• Supports simultaneous testing of up to 20 insulation rods
• Suitable for batch inspection of electrical safety tools
• Improves testing efficiency

2. Designed for 35kV Insulation Rod Testing

• Specially developed for insulation rods rated up to 35kV
• Suitable for routine withstand voltage testing
• Meets electrical safety inspection requirements

3. Motorized Adjustment System

• Electric positioning adjustment
• Wireless remote control operation
• Fast and convenient electrode adjustment

4. Adjustable Electrode Structure

• Adjustable spacing range: 300–900mm
• Flexible adaptation to different insulation rod specifications
• Ensures accurate test positioning

5. Stable Mechanical Design

• High-strength structural frame
• Clear scale markings
• Accurate distance adjustment
• Reliable long-term operation

Applications

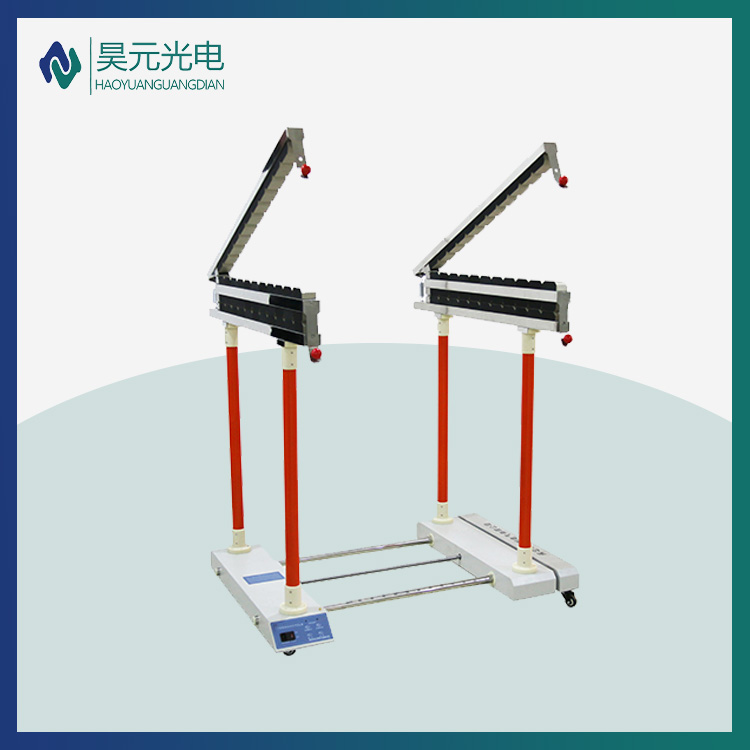

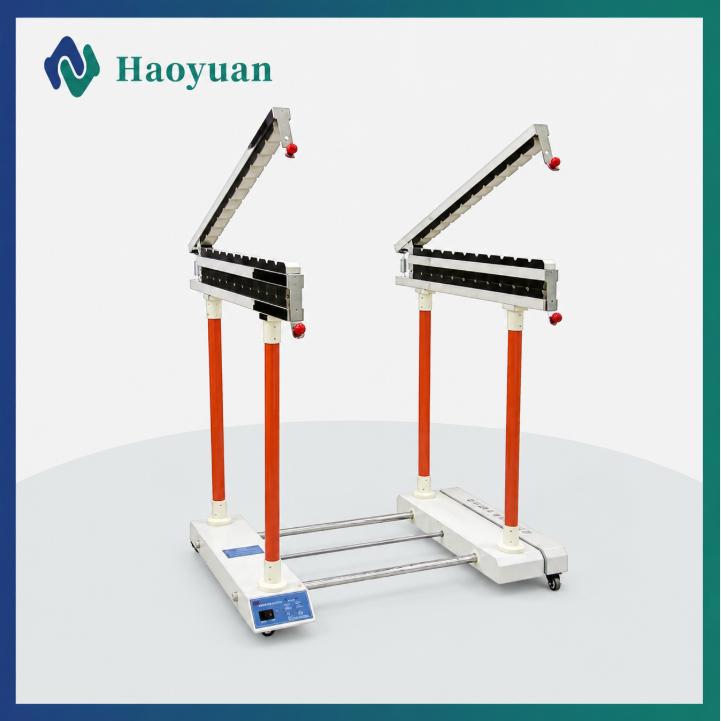

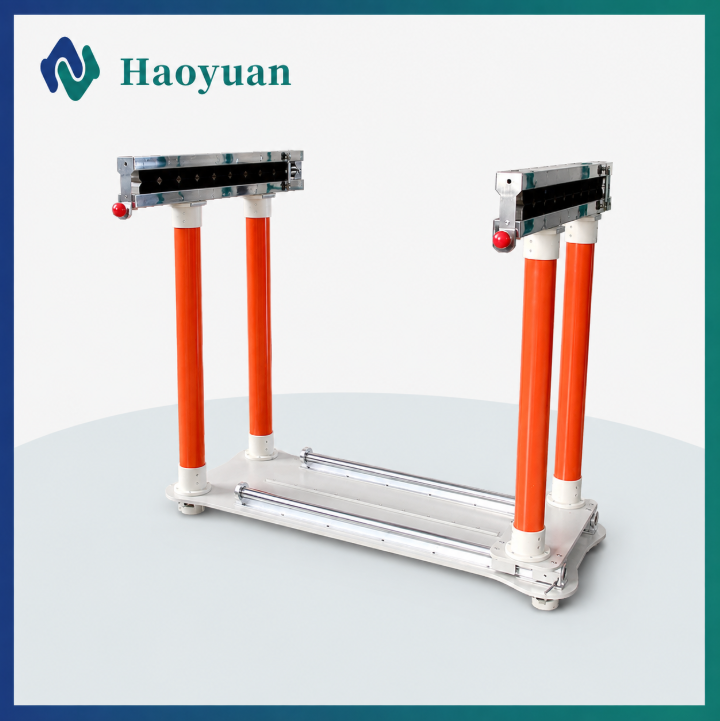

HY2680YG-100 Electric Insulation Rod Test Stand is widely used in:

• Power utility companies
• Electrical safety equipment inspection centers
• High voltage laboratories
• Substation maintenance departments
• Electrical tool manufacturers
• Safety testing organizations

Technical Specifications
