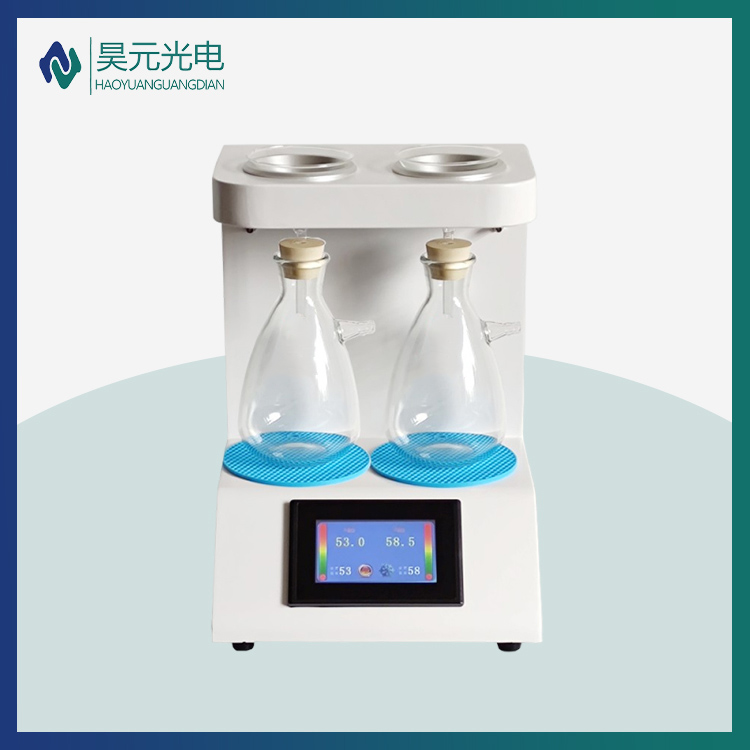

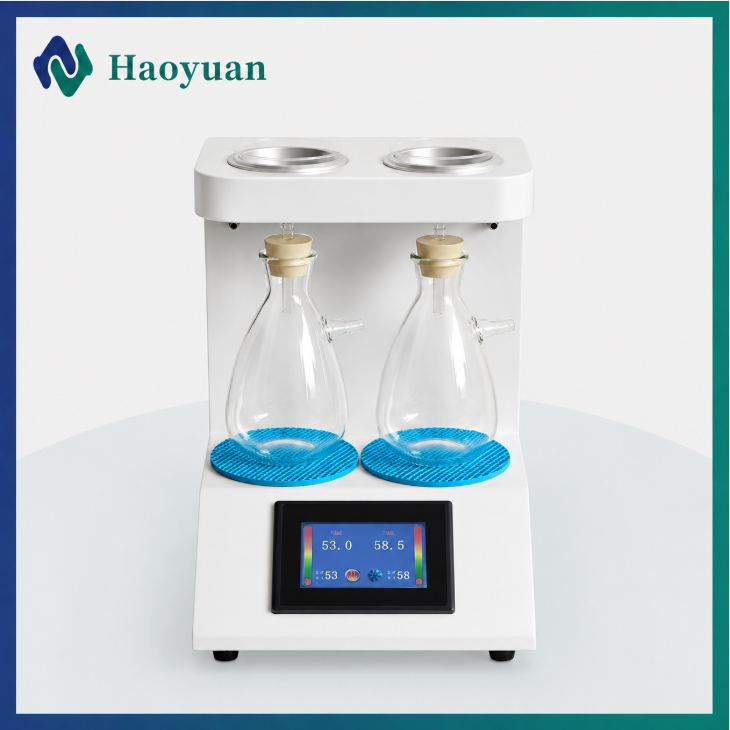

HYJZ Dual-Channel Petroleum Product Mechanical Impurities Tester

TheHYJZ Dual-Channel Petroleum Product Mechanical Impurities Tester is designed for the determination of mechanical impurities in petroleum products and petroleum additives in accordance with GB/T 511-2010. Featuring a dual-channel test design, precise temperature control, and an integrated touchscreen display, it is suitable for transformer insulating oil, turbine oil, lubricating oil, and other petroleum-based products used in power and industrial laboratories.

Send Inquiry

Detailed Description

Key Features:

Dual-channel design for simultaneous testing of two samples
Compliant with GB/T 511-2010
Temperature control range: Ambient to 99°C
Temperature accuracy: ±0.5°C
Temperature resolution: 0.1°C
4.3-inch LCD touchscreen display
Rated power: 400 W
Compact and integrated design for laboratory use
Suitable for transformer insulating oil, turbine oil, lubricating oil, and petroleum products
Easy operation with efficient and stable testing performance

Technical Specifications:

Parameter	Specification
Test Method	GB/T 511-2010
Display	4.3-inch LCD Touchscreen
Temperature Control Range	Ambient to 99°C
Temperature Accuracy	±0.5°C
Temperature Resolution	0.1°C
Rated Power	400 W
Dimensions	300 × 300 × 400 mm
Net Weight	8 kg
Operating Temperature	5°C to 40°C
Relative Humidity	<80% RH
Power Supply	AC 220 V ±10%, 50 Hz
