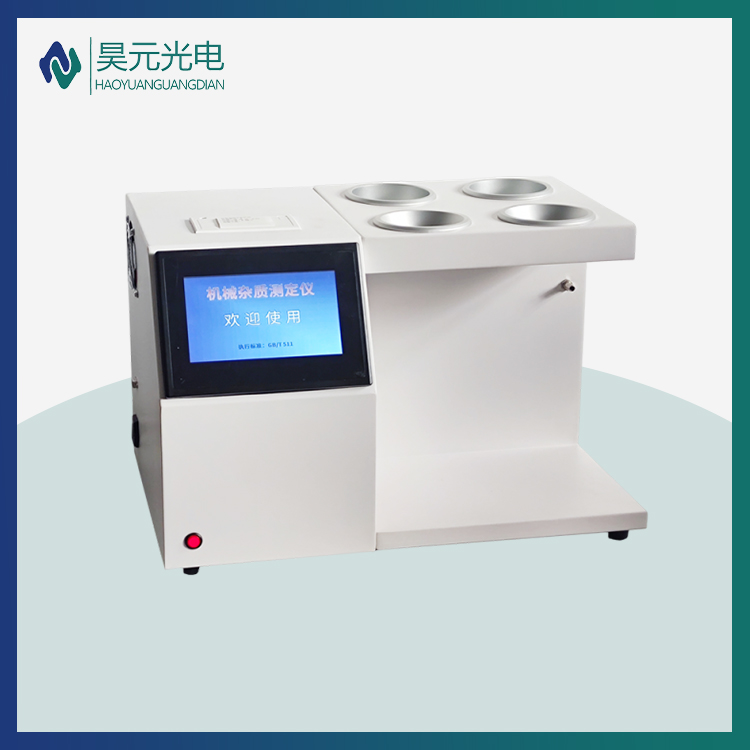

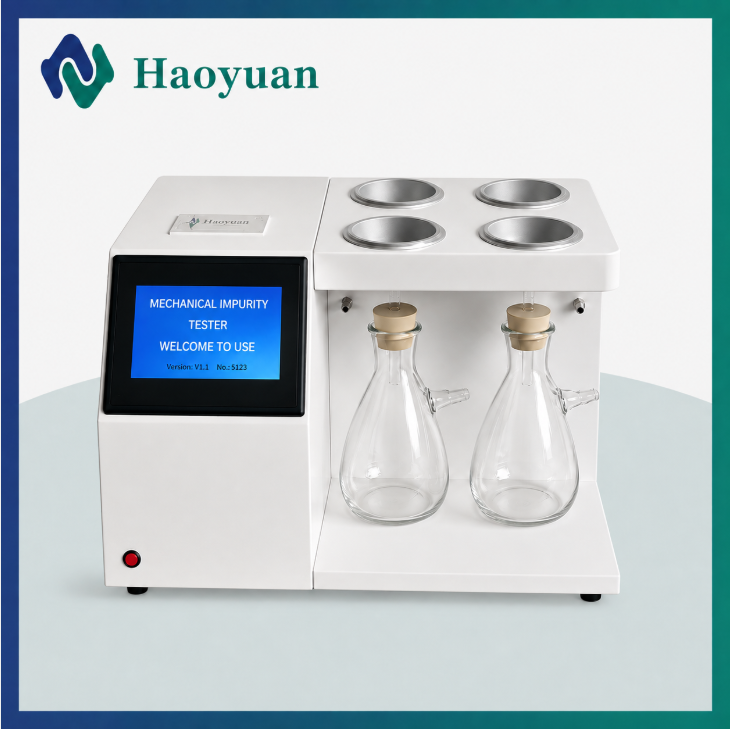

HYJZ-2 Automatic Petroleum Product Mechanical Impurities Tester

The Automatic Petroleum Product Mechanical Impurities Tester is designed for the determination of mechanical impurities in petroleum products and petroleum additives in accordance with GB/T 511-2010. Featuring an integrated oil-free vacuum pump, dual-channel solvent heating system, automatic weighing, temperature control, and 7-inch touchscreen display, it provides an efficient and reliable testing solution for transformer insulating oil, turbine oil, lubricating oil, petroleum products, and related samples.

Send Inquiry

Detailed Description

Key Features

Complies with GB/T 511-2010
Integrated oil-free vacuum pump
Dual-channel solvent heating system
Automatic weighing function
No external vacuum pump or water bath required
7-inch LCD touchscreen, 800 × 480 resolution
Temperature control range: Ambient to 100°C
Temperature accuracy: ±0.5°C
Temperature resolution: 0.1°C
Built-in 58 mm thermal printer
Integrated design for convenient laboratory operation
Suitable for transformer insulating oil, turbine oil, lubricating oil, and petroleum products

Technical Specifications

Parameter	Specification
Test Method	GB/T 511-2010
Display	7-inch LCD, 800 × 480
Temperature Control Range	Ambient to 100°C
Temperature Accuracy	±0.5°C
Temperature Resolution	0.1°C
Printer	58 mm Thermal Printer
Rated Power	800 W
Dimensions	520 × 350 × 340 mm
Net Weight	17 kg
Operating Temperature	5°C to 40°C
Relative Humidity	<80% RH
Power Supply	AC 220 V ±10 V, 50 Hz
