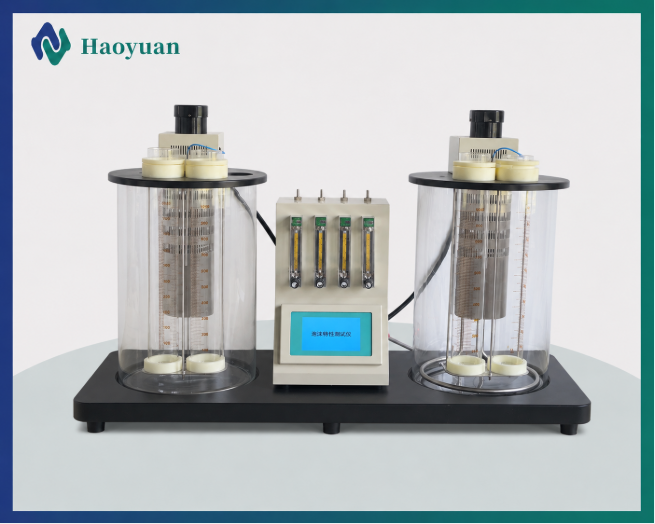

The tester is particularly suitable for quality control and condition assessment of oils used in power generation equipment.
| Application | Purpose |
|---|---|
| Turbine Oil Testing | Evaluate foaming tendency and foam stability |
| Generator Lubricating Oil | Assess oil foaming characteristics |
| Power Plant Laboratory | Routine lubricating oil quality testing |
| Bearing Lubrication Systems | Evaluate oil performance under aeration conditions |
| Hydraulic Oil Testing | Analyze foaming characteristics of hydraulic fluids |
| Petroleum Product Testing | Laboratory evaluation of petroleum-based oils |
| Oil Quality Control | Incoming inspection and periodic oil testing |
| Preventive Maintenance | Support condition-based oil management |
| Item | Technical Specification |
|---|---|
| Display | High-Definition Color Touchscreen |
| Airflow Control | 16–160 mL/min, Adjustable |
| Airflow Rate | 94 ± 5 mL/min under specified test conditions |
| Gas Diffusion Head Diameter | 25.4 ± 0.02 mm |
| Maximum Diffusion Head Aperture | ≤80 μm |
| Timing Accuracy | ±1 s |
| Timing Range | 0–99.99 h |
| Temperature Control Range | 0–99.9°C |
| Temperature Control Accuracy | ±0.5°C |
| Low-Temperature Bath | 24 ± 0.5°C |
| High-Temperature Bath | 93.5 ± 0.5°C |
| Air Supply | Integrated Air Supply, 3 L/min |
| Gas Diffusion Head Flow Rate | 3000–6000 mL/min at 2.45 kPa |
| Power Supply | AC 220 V ±10%, 50 Hz ±5% |
| Rated Power | 3300 W |
| Ambient Temperature | 0–40°C |
| Relative Humidity | ≤85% RH |
| Net Weight | Approx. 39 kg |
