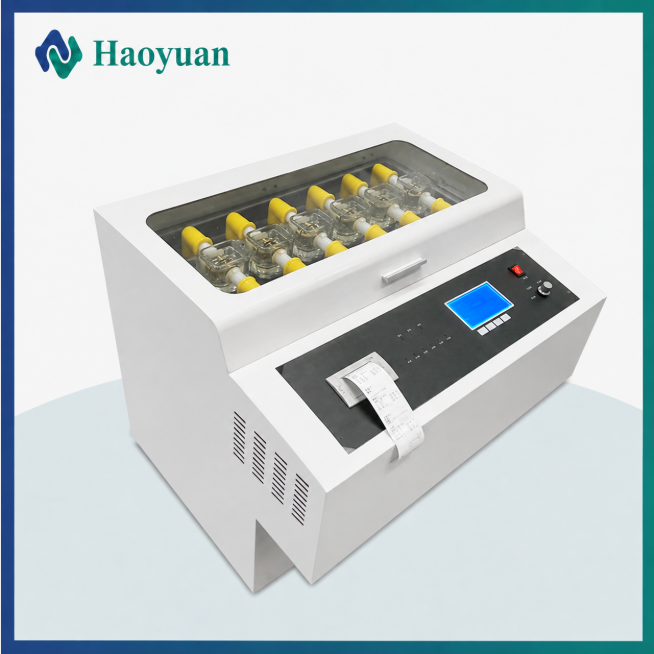

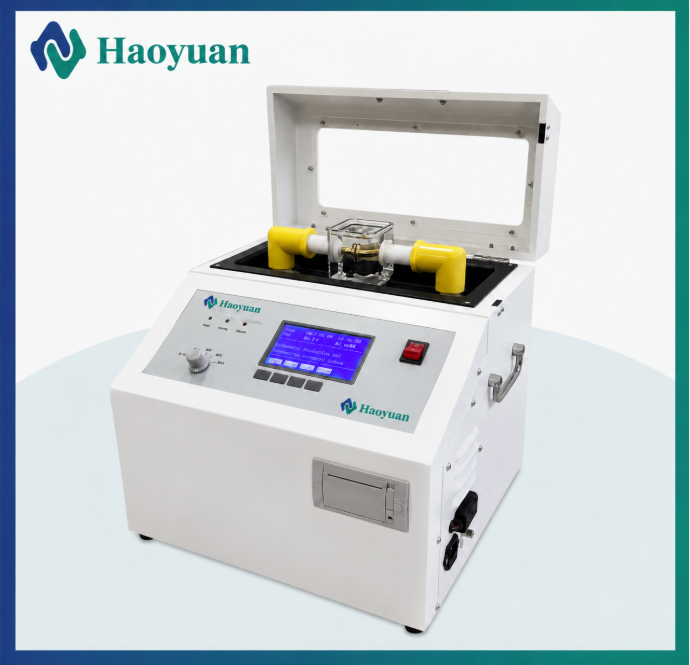

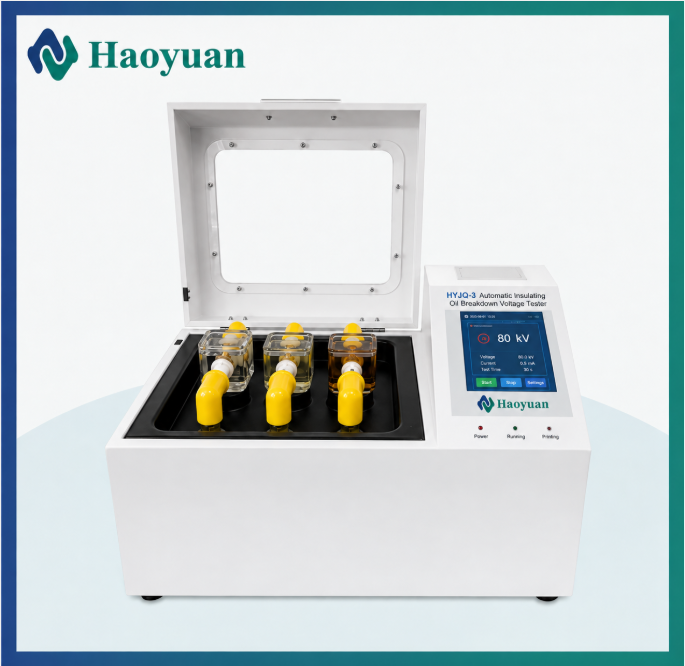

HYJQ-1 / HYJQ-3 / HYJQ-6 Fully Automatic Transformer Insulating Oil Dielectric Strength Tester

Model

HYJQ-1

HYJQ-3

HYJQ-6

Number of Oil Cups

1

3

6

Output Voltage

0~80 KV

0~80 KV

0~80 KV

Test Frequency

1~10

1~10

1~10

Dimensions

409 ×393 ×388 mm

409 ×393 ×388 mm

409 ×393 ×388 mm

Net Weight

29 kg

38 kg

38 kg

Voltage Distortion Rate

＜1%

＜1%

＜1%

Voltage Rising Rate

0. 5 ~5 kV/s

0. 5 ~5 kV/s

0. 5 ~5 kV/s

Voltage Stabilization Time

0~15min

0~15 min

0~15 min

Voltage Ramp-Up Time

0~5 min

0~5 min

0~5 min

Measurement Accuracy

±3%

±3%

±3%

Power Supply

AC 220 V±10% 50/60 Hz

AC 220 V±10% 50/60 Hz

AC 220 V±10% 50/60 Hz

Power Consumption

200 W

200 W

200 W

Ambient Temperature

0-40 ℃

0-40 ℃

0-40 ℃

Relative Humidity (RH)

≤85%

≤85%

≤85%
