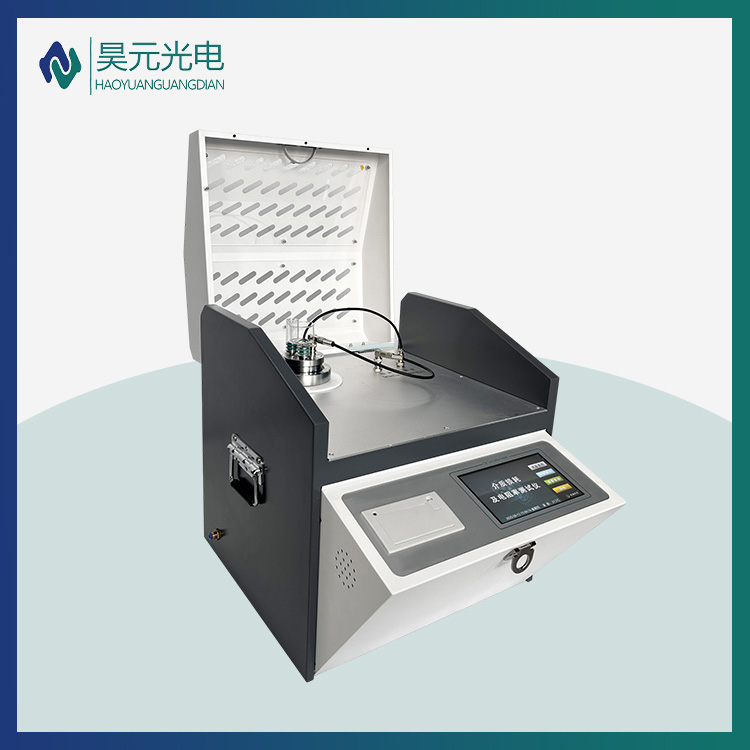

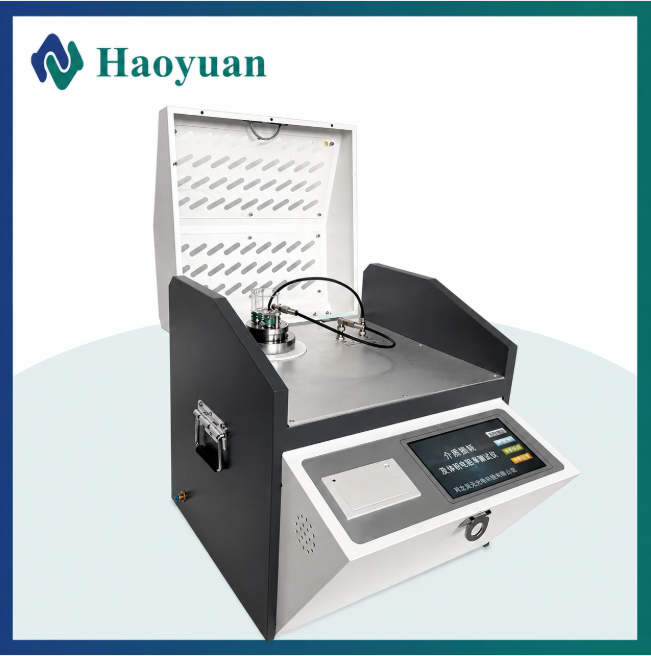

HYJD-2 Insulating Oil Tan Delta & Volume Resistivity Tester | Transformer Oil Dielectric Loss Tester

The HYJD-2 measures the dielectric loss factor (tan delta) and volume resistivity of transformer and insulating oils to assess insulation condition and detect moisture, aging, and contamination. Designed for new-oil acceptance testing and routine oil condition monitoring, it is suitable for transformers, high-voltage switches, cables, capacitors, and other power equipment.

Send Inquiry

Detailed Description

Key Features

Fast & Uniform Temperature Control
Medium-frequency induction heating combined with precise PID temperature control enables contact-free, uniform, and rapid heating of insulating oil, improving test efficiency and temperature stability.
High-Stability Measurement Reference
Built-in SF₆ gas-filled three-electrode standard capacitor provides a highly stable measurement reference, helping maintain accurate and reliable test results with minimal influence from ambient temperature and humidity.
Advanced Power Supply & Anti-Interference Design
The AC-DC-AC conversion power supply effectively isolates fluctuations in grid voltage and frequency, ensuring stable testing performance even when powered by a generator.

Technical Specifications & Operating Conditions

Model	HYJD-2
Discharge Mode	Manual
Total Weight	21 Kg
Dimensions	420×380×385 mm
Power Consumption	< 200 W
Operating Temperature	0 ~ 40 ℃
Relative Humidity (RH)	≤ 80%
AC Test Voltage	0~2200 V continuously adjustable, frequency 50 Hz
DC Test Voltage	0 ~ 500 V continuously adjustable
Capacitance Range:	5 pF ~ 200 pF
Relative Permittivity Range	1.000 ~ 30.000
Dielectric Dissipation Factor (tanδ) Range	0.00001 ~ 100
Volume Resistivity Range	2.5 MΩ·m ~ 20 TΩ·m
Temperature Measurement Accuracy	± 0.5 ℃
Measurement Accuracy	Capacitance: ±(1% of reading + 0.5 pF) Relative Permittivity: ±1% of reading Dielectric Dissipation Factor: ±(1% of reading + 0.00001) DC Volume Resistivity: ±10% of reading
Resolution	Capacitance: 0.01 pF Relative Permittivity: 0.001 Dielectric Dissipation Factor (tanδ): 0.00001
